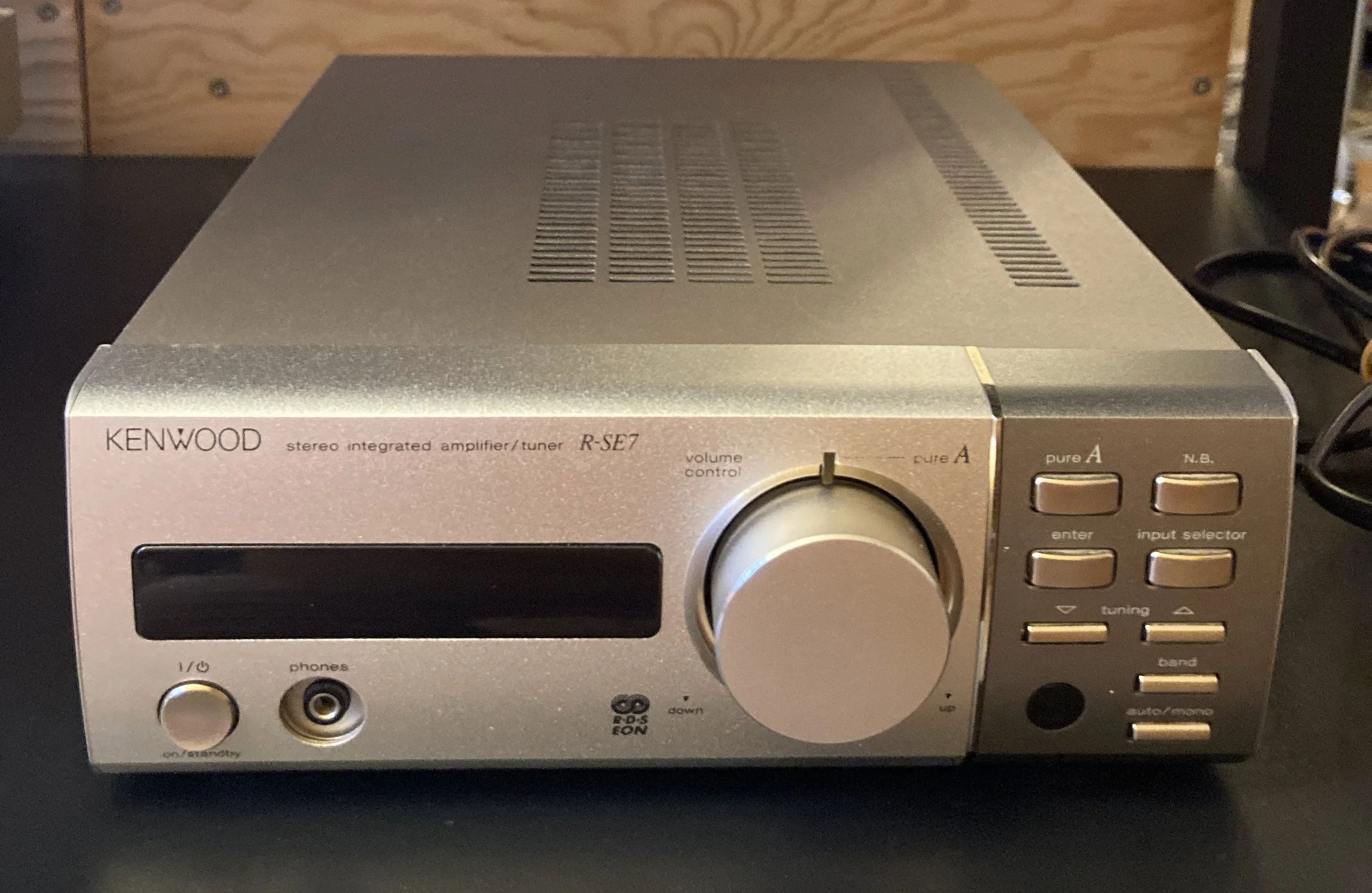

KENWOOD R-SE7 Ampli-Tuner

Specifications

Receiver (R-SE7)

[Amplifier section]

Rated pow er output

Class AB operation

20 w atts per channel minimum RM S, both chan-

nels driven, at 6 Ω, 1 kHz w ith no more than 10 %

total harmonic distortion.

(DIN) 1 kHz at 6 Ω, 0.7 % T.H.D. ........... 15 W + 15 W

Class A operation

7.5 w atts per channel minimum RM S, both chan-

nels driven, at 6 Ω, 1 kHz w ith no more than 10 %

total harmonic distortion.

Total harmonic distortion ...... 0.02% (1 kHz, 10 W, 6 Ω)

Frequency response ......... 20 Hz ~ 40 kHz, +0 dB, -3 dB

Input sensitivity / Impedance

.......................................................... 200 mV / 47 kΩ

Output level / Impedance

SUPER WOOFER PRE OUT ................... 2.0 V / 1 kΩ

TAPE REC ........................................... 200 mV / 1 kΩ

Signal to noise ratio

............................................................. 96 dB (IHF'66)

[FM Tuner section]

Tuning frequency range ............... 87.5 M Hz ~ 108 M Hz

Usable sensitivity (DIN)

M ONO

.. 1.2 µV (75 Ω) / 13.2 dBf (40 kHz DEV., S/ N 26 dB)

Signal to noise ratio

(DIN w eighted at 1 kHz, 65.2 dBf input)

M ONO .............................................................. 65 dB

STEREO ............................................................ 58 dB

Selectivity (DIN ±300 kHz) ................................... 64 dB

Stereo separation (DIN at 1 kHz) ........................ 35 dB

[AM Tuner section]

Tuning frequency range ................ 531 kHz ~ 1,602 kHz

Usable sensitivity (30% mod., S/ N 20 dB)

.................................................... 15 µV / (500 µV/ m)

Signal to noise ratio (at 30% mod., 1 mV input)

........................................................................... 48 dB

Output level / Impedance (30% mod., 1 mV input)

............................................................... 0.18 V / 1 kΩ

General

Pow er consumption .............................................. 45 W

Dimensions .................................................. W: 200 mm

Weight (net) .......................................................... 3.0 kg
